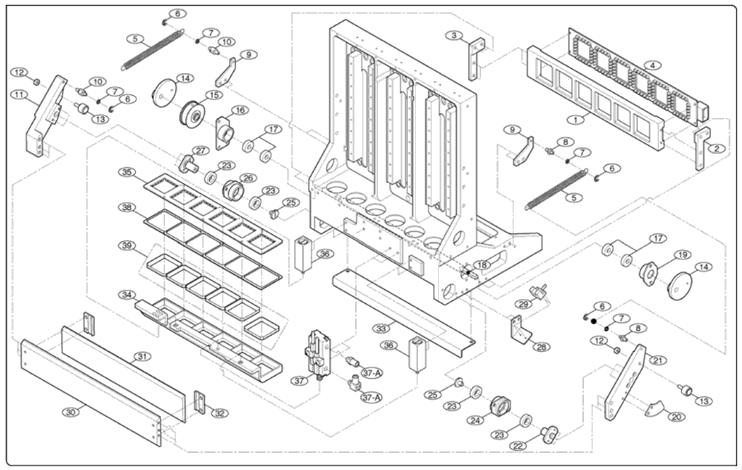

#01 P/N: J71550538B | Part Name: OUTER ILL BRACKET | Qty: 1
#02 P/N: J7155539A | Part Name: OUTER ILL SIDE BRACKET | Qty: 1
#03 P/N: J7155540A | Part Name: OUTER ILL SIDE BRACKET | Qty: 1
#04 P/N: J9060357B | Part Name: HEAD OUTER LED BOARD ASSY | Qty: 1 | Tyep: Rev 1.1
#05 P/N: J6107044A | Part Name: SPRING| Qty: 2 | Type: AWY 6-50
#06 P/N: J6071150050 | Part Name: E-RING| Qty: 2 | Type: DIA1.5(SUS)
#07 P/N: J7455026A | Part Name: SPRING BUSH | Qty: 4
#08 P/N: J7055559A | Part Name: MIRROR PIN| Qty: 2
#09 P/N: J7055560A | Part Name: MIRROR SPRING BRACKET| Qty: 2
#10 P/N: J7055558A | Part Name: MIRROR PIN | Qty: 1| Qty: 2
#11 P/N: J7155526A | Part Name: MIRROR ARM-LEFT | Qty: 1
#12 P/N: J6025300036 | Part Name: HEX NUT| Qty: 2 | Type: M3
#13 P/N: J6601081A | Part Name: CAM FOLLOWER| Qty: 2 | Type: CF3UU-A
#14 P/N: J7055143B | Part Name: CAM| Qty: 2
#15 P/N: J7155522A | Part Name: PULLEY (S-AXIS 1)
#16 P/N: J7055557A | Part Name: BEARING HOUSING
#17 P/N: J6601079A | Part Name: BALL BEARING | Qty: 4 | Type: 695ZZ
#18 P/N: J7055207B | Part Name: MIRROR SHAFT | Qty: 1
#19 P/N: J7055557A | Part Name: BEARING HOUSING | Qty: 1 | Type: J7055163A
#20 P/N: J7155525A | Part Name: MIRROR SENSOR DOG | Qty: 1
#21 P/N: J7155527A | Part Name: MIRROR ARM-RIGHT | Qty: 1
#22 P/N: J7055151A | Part Name: ARM JOINT | Qty: 1
#23 P/N: J6680100A | Part Name: BALL BEARING | Qty: 4 | Type: MR148ZZ
#24 P/N: J7055155A | Part Name: MIRROR JOINT-RIGHT | Qty: 1
#25 P/N: J7055153A | Part Name: MIRROR SCREW| Qty: 2
#26 P/N: J7055205A | Part Name: MIRROR JOINT-LEFT | Qty: 1
#27 P/N: J7055204A | Part Name: ARM JOINT | Qty: 1
#28 P/N: J7055556B | Part Name: MIRROR SENSOR BRACKET | Qty: 1
#29 P/N: J3212027A | Part Name: MICRO PHOTO SENSOR | Qty: 3 | PM-L24
#30 P/N: J7155530A | Part Name: MIRROR SUPPORT | Qty: 1
#31 P/N: J6755002A | Part Name: FOLDING MIRROR | Qty: 1
#32 P/N: J7155197A | Part Name: MIRROR FIX PLATE| Qty: 2
#33 P/N: J7155515A | Part Name: LOWER COVER| Qty: 2 | Type: | Qty: 1
#34 P/N: J71550570B | Part Name: SIDE ILLUM BODY | Qty: 1
#35 P/N: J9060404A | Part Name: HEAD SIDE LED BOARD ASS’Y | Qty: 1 | Type: Rev 1.0
#36 P/N: J90551011A | Part Name: SIDE ILLUM GUIDE ASS’Y| Qty: 2 | Type: J90551001A
#37 P/N: J9083179A | Part Name: SIDE ILL U/D SENSOR CABLE ASS’Y | Qty: 1 | Type: SM-HD006
#37-A P/N: J6711132A | Part Name: FITTING | Qty: 1 | Type: M-5HL-4
#37-B P/N: J6711156A | Part Name: HOSE NIPPLE (D/C) | Qty: 1 | Type: M-5H-4
#38 P/N: J7255085A | Part Name: SIDE ILLUM ISOLATOR | Qty: 1
#39 P/N: J7255084A | Part Name: SIDE REFLECTOR | Qty: 6
