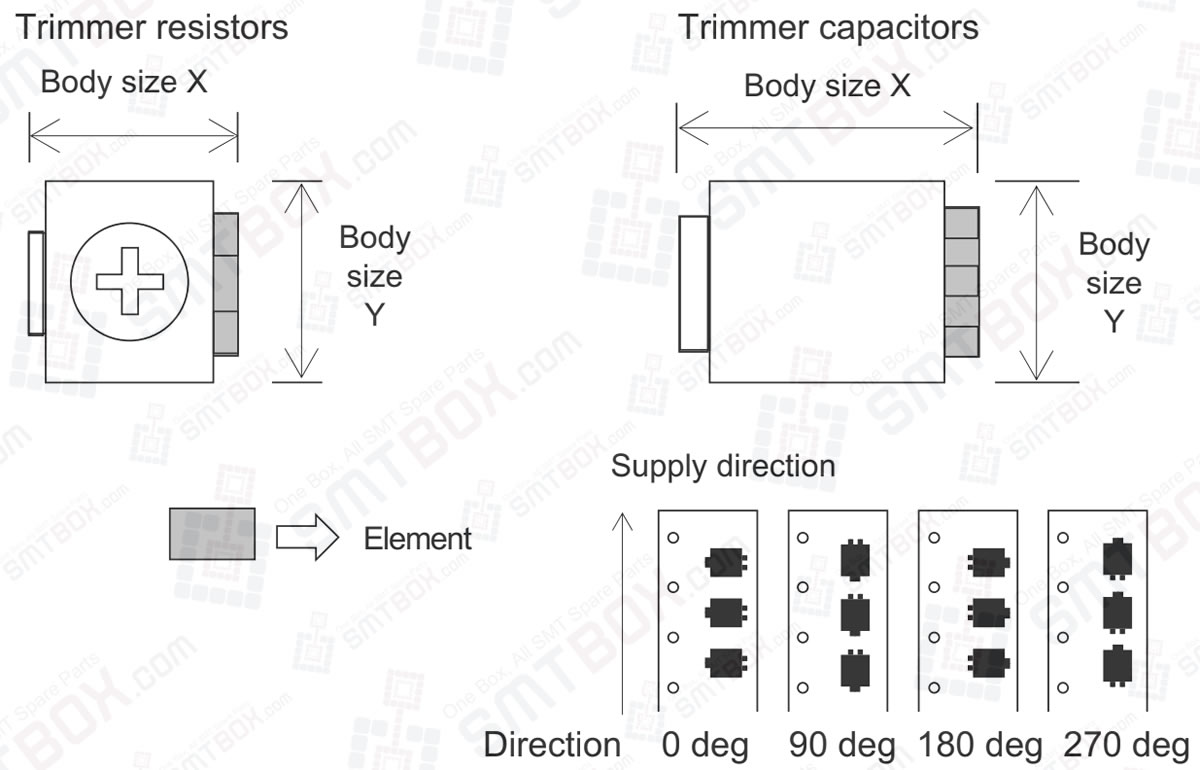

It is necessary to enter the body size and element information in part data.
Enter the lead quantity (2 or 3), lead width and length, and width tolerance.
First, the part position is determined using the vision type 71 processing method, and then, direction inspection is performed based on the detection of one lead.
However, the detected lead is not used for positioning. The reference point for the part is the part center.
It is important to note the following points.
Direction inspection is possible only if there are 2 or 3 leads on only one side.
Direction inspection cannot be performed if diagonally across from the detected lead there is a protrusion of the same shape as the lead (Fig. 1)
Using a two pin setting, detection of three pins of the same shape is not possible. (Fig. 2)
Only enter one element into the element information. If 2 or more elements are entered, an 0xD62A error (element data is incorrect) occurs when the parts are being registered.
