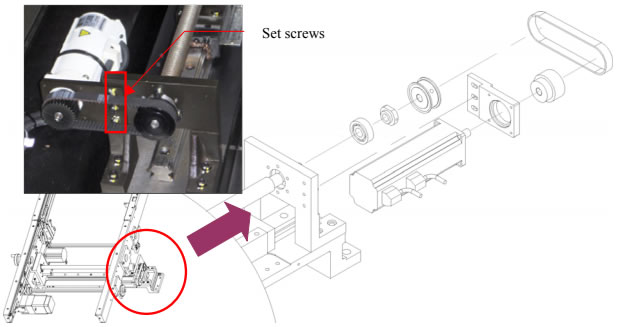

Standard Value of Timing Belt Tension: Work Zone Belt For Driving Motor on Samsung SM321 Tension (N): 25 N Frequency (Hz): 450 ± 10% Remarks: Use the U-505(Tension Gage) Standard Value of Timing Belt Tension: Entry / Exit Belt for Driving Motor on Samsung SM321 Conveyor Step Motor Replacement Procedure of Samsung Techwin Component Placer SM321
