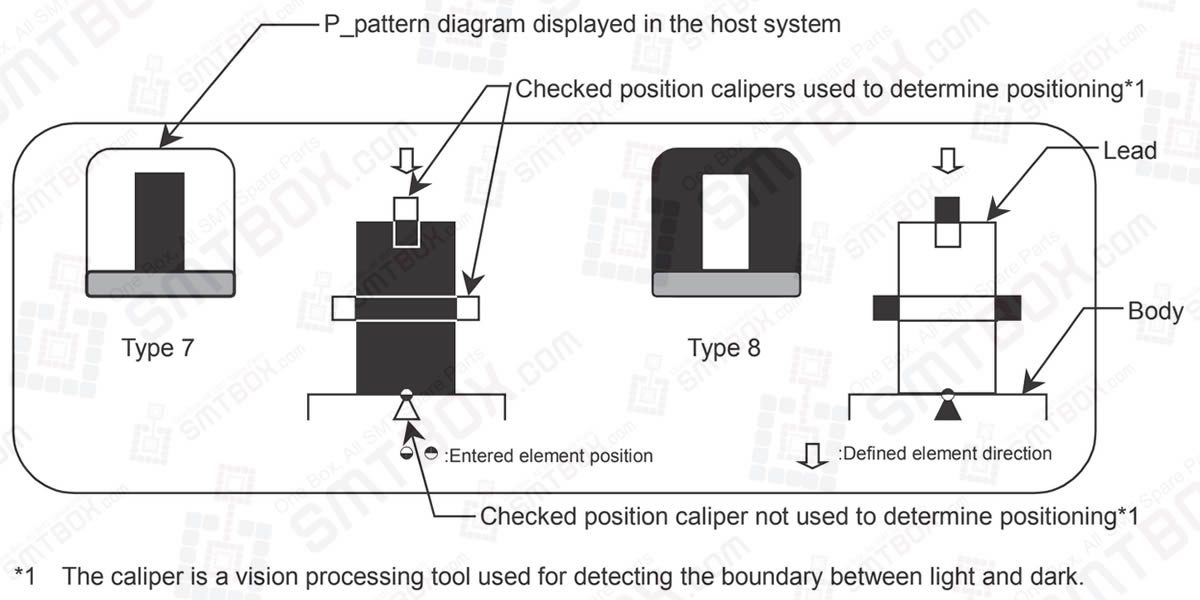

P_Pattern Diagram Explanation Of P_Pattern Details On FUJI NXT Scalable Placement Platform

P_pattern diagram displayed in the host system.

Checked position caliper not used to determine positioning*1.

Checked position calipers used to determine positioning*1.

Note: *1 The caliper is a vision processing tool used for detecting the boundary between light and dark.
