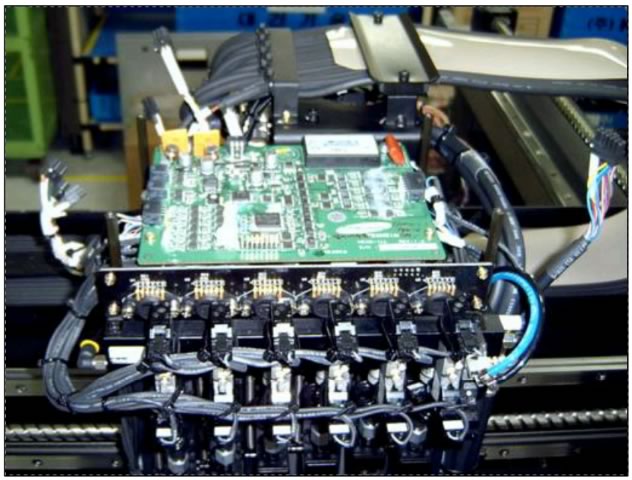

Having issues with Head Illumination Board Assembly on Samsung Techwin SM321 SMT Component Placer? Read our step-by-step SMT maintenance solution below. If you require replacement feeders, nozzles, or sensors, contact SMTBOX for OEM-compatible parts.
HIBA: CN1 CAP: HEAD INPUT / OUTPUT BOARD CN4
HIBA: CN2 CAP: HEAD INPUT / OUTPUT BOARD CN2
HIBA: CN3 CAP: FLY OUTER LED BOARD
HIBA: CN4 CAP: FID OUTTER BOARD
HIBA: CN5 CAP: FID INNER BOARD
HIBA: CN6 CAP: HEAD SIDE ILLUMINATION
*HIBA = Head Illumination Board Assembly
*CAP = Counterpart Assembly Point
