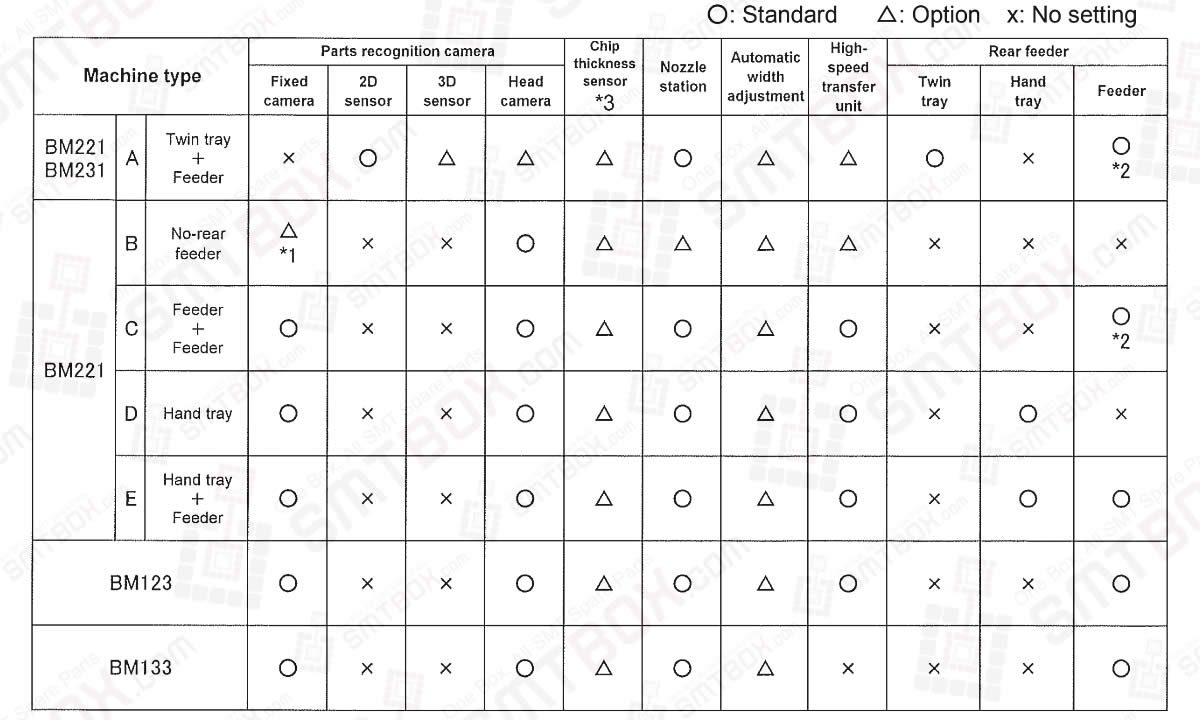

Available Options by Machine Type on Panasonic Modular Placement Machine BM231 BM221

1: When the nozzle station has not been selected, components cannot be recognized via the fixed camera. (For calibration)

2: The rear feeders for the types A and C are fixed feeders. Therefore, the batch exchange cart cannot be used.

3: The chip thickness sensor is available only when the head camera is supported.
