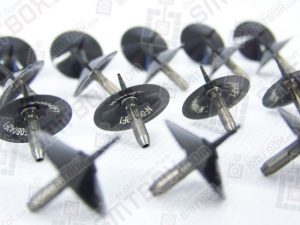

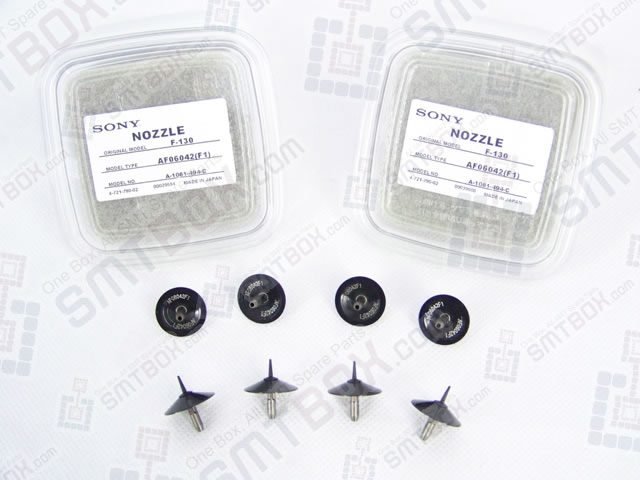

What is Sony F-130 SI-E1000 SMD SMT Pick Up Nozzle AF06042(F1) A-1081-494-C?
Looking for Sony F-130 SI-E1000 SMD SMT Pick Up Nozzle AF06042(F1) A-1081-494-C? This SMT spare part (SKU: AF06042(F1, Brand: JUKI) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.
We offer Sony F-130 SI-E1000 SMD SMT Pick Up Nozzle AF06042(F1) A-1081-494-C. Please contact us: sales@smtbox.com
| Ref.No. | 1 | 2 | 3 | 4 | 5 |
| Name | AF05021 | AF06040 | AF06041 | AF08050 | AF10070 |
| OuterDiameter | 0.45mm | 0.6mm | 0.6mm | 0.8mm | 1.0mm |
| InnerDiameter | 0.2mm | 0.4mm | 0.4mm | 0.5mm | 0.7mm |
| Ref.No. | 6 | 7 | 8 | 9 | 10 |
| Name | AF10071 | AF12080 | AF25200 | AF40300 | AF60400 |
| OuterDiamete | 1.0mm | 1.2mm | 2.5mm | 4.0mm | 6.0mm |
| InnerDiameter | 0.7mm | 0.8mm | 2.0mm | 3.0mm | 4.0mm |
| Ref.No. | 11 | 12 | 13 | 14 | |
| Name | AB12080 | AB25200 | AB12080 | AB12080 | |
| OuterDiameter | 1.2mm | 2.5mm | 4.0mm | 6.0mm | |
| InnerDiameter | 0.8mm | 2.0mm | 3.0mm | 4.0mm | |
The Sony F-130 SI-E1000 SMD SMT Pick Up Nozzle AF06042(F1) A-1081-494-C (SKU: AF06042(F1) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive Sony SMD Nozzle, Sony SMT Machine Spare Parts inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
How to use Sony F-130 SI-E1000 SMD SMT Pick Up Nozzle AF06042(F1) A-1081-494-C?
For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.
- Power down your mounter and disconnect the vacuum line.
- Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
- Carefully align the new component and tighten to the manufacturer's torque specifications.
- Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
