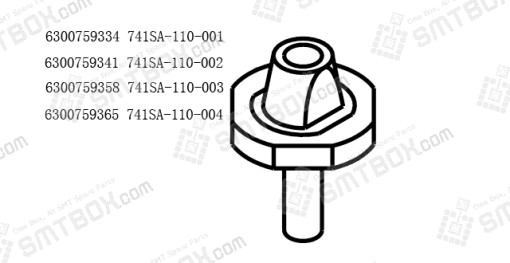

Hitachi Sanyo Tim 5100 Nozzle 6300759334 6300759341 6300759358 6300759365 Side A

Hitachi Sanyo Tcm X100 Nozzle 6300622621 NO19 Side A

Hitachi Sanyo Tcm X100 Nozzle Z93 6300760569 Z94 6300782295 Z115 6300760576 Z118 6300833430 Z552 6300795370 Z901 6300529593 Side A

Hitachi Sanyo Tcm X100 Nozzle 6300622607 NO18 Side A

Hitachi Sanyo Tcm X100 Nozzle 6300622614 NO20 Side A

Hitachi Sanyo Tcm X100 Nozzle 6300617467 Spk 3C 6300617474 N Type 6300617481 P Type Side A

Hitachi Sanyo Tcm X100 Nozzle 6300611977 S Type 6300612028 V Type 6300858846 Side A

Hitachi Sanyo Tcm X100 Nozzle Z11 6300529517 Z21 6300529524 Z31 6300529531 Z41 6300529548 Z52 6300671865 Z62 6300683103 Z71 6300529579 Z81 6300529586 Side A

Hitachi Sanyo Tcm X100 Nozzle 6300622591 NO14 Side A

Hitachi Sanyo Tcm X100 Nozzle 6300617443 L Type 6300617450 U Type Side A

Hitachi Sanyo TCM-X100 TCM-X200 TCM3000 Z11 Z21 Z31 Z41 Z52 Z62 Z71 Z81 Z93 Z94 Z115 Z118 Z552 Z901 Universal UIC 4795 4796 4797 HSP L/V/U/S/N/P Tpye SMD SMT Nozzle

Original and brand new. Part Name: SMD SMT Pick-up Nozzle. Part Number:Z11 Z21 Z31 Z41 Z52 Z62 Z71 Z81 Z93 Z94 Z115 Z118 Z552 Z901.Type: L/V/U/S/N/P Tpye. For Hitachi TCM-X100 Electronics Applied Systems.

Online Inquiry

SMTBOX B2B Trust Guarantees

DHL/UPS Express Shipping

Wire & PayPal Secure

100% Genuine & Tested

ISO 9001 Quality Compliant

Technical Specifications

Part Number (SKU)

TCM-X100

Manufacturer (Brand)

Hitachi

Frequently Sourced Together

What is Hitachi Sanyo TCM-X100 TCM-X200 TCM3000 Z11 Z21 Z31 Z41 Z52 Z62 Z71 Z81 Z93 Z94 Z115 Z118 Z552 Z901 Universal UIC 4795 4796 4797 HSP L/V/U/S/N/P Tpye SMD SMT Nozzle?

Direct Answer / Quick Facts:

Looking for Hitachi Sanyo TCM-X100 TCM-X200 TCM3000 Z11 Z21 Z31 Z41 Z52 Z62 Z71 Z81 Z93 Z94 Z115 Z118 Z552 Z901 Universal UIC 4795 4796 4797 HSP L/V/U/S/N/P Tpye SMD SMT Nozzle? This SMT spare part (SKU: TCM-X100, Brand: Hitachi) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.

Hitachi Sanyo TCM-X100 TCM-X200 TCM3000 Z11 Z21 Z31 Z41 Z52 Z62 Z71 Z81 Z93 Z94 Z115 Z118 Z552 Z901 L/V/U/S/N/P Universal UIC 4795 4796 4797 HSP Tpye SMD SMT Nozzle

PART No.	PART NAME	REMARKS

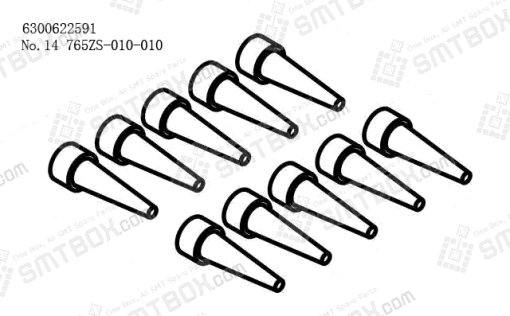

6300622591	NOZZLE	No.14 765ZS-010-010

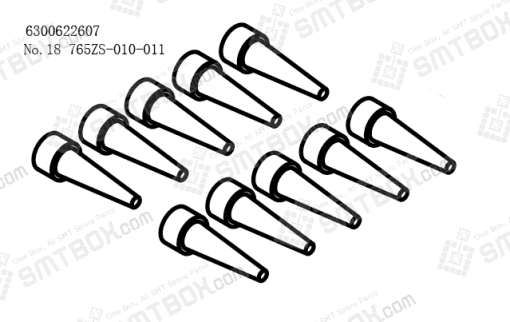

6300622607	NOZZLE	No.18 765ZS-010-011

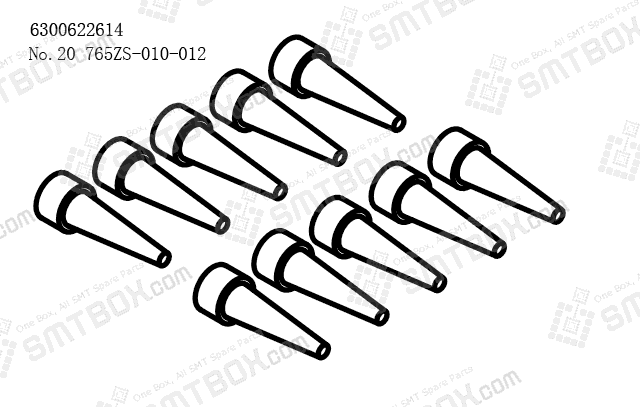

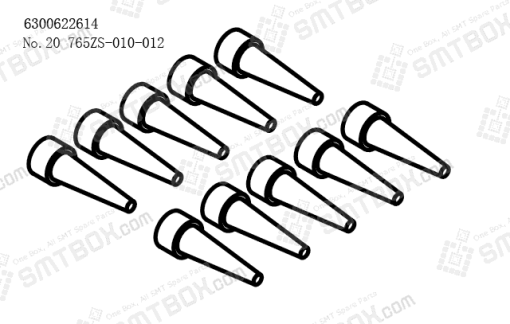

6300622614	NOZZLE	No.20 765ZS-010-012

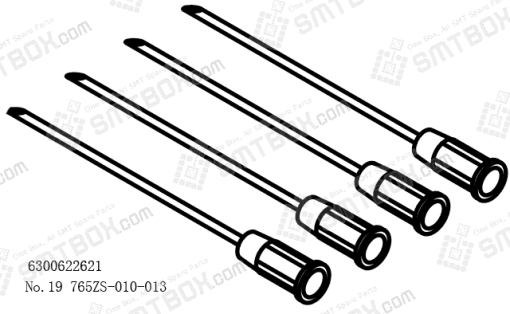

6300622621	NOZZLE	No.19 765ZS-010-013

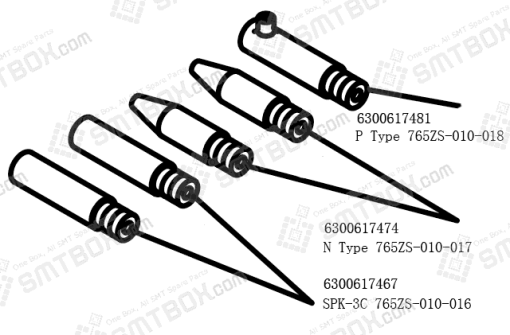

6300617467	NOZZLE	SPK-3C 765ZS-010-016
6300617474	NOZZLE	N Type 765ZS-010-017
6300617481	NOZZLE	P Type 765ZS-010-018

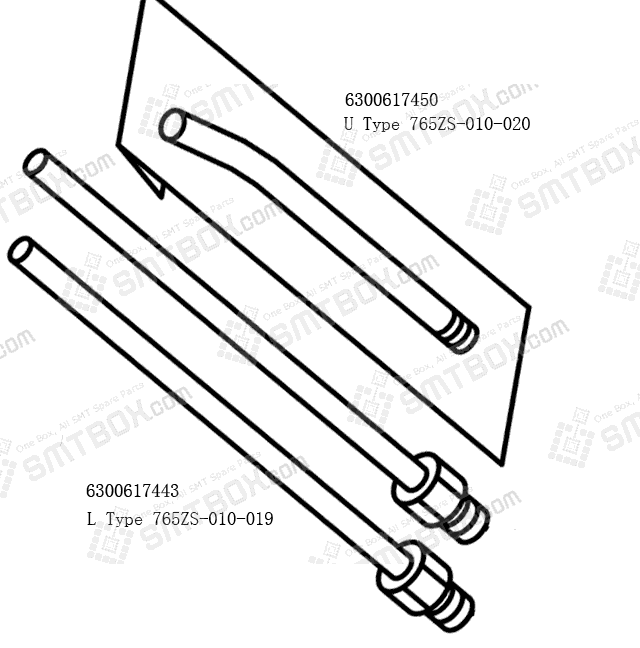

6300617443	NOZZLE	L Type 765ZS-010-019
6300617450	NOZZLE	U Type 765ZS-010-020

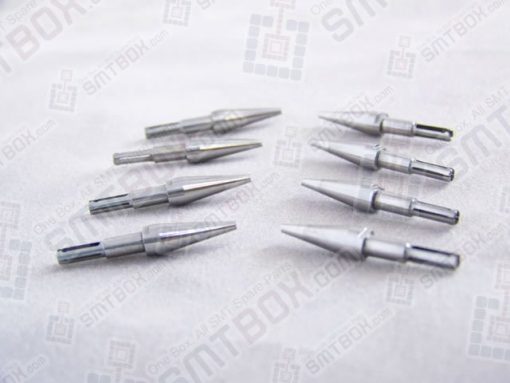

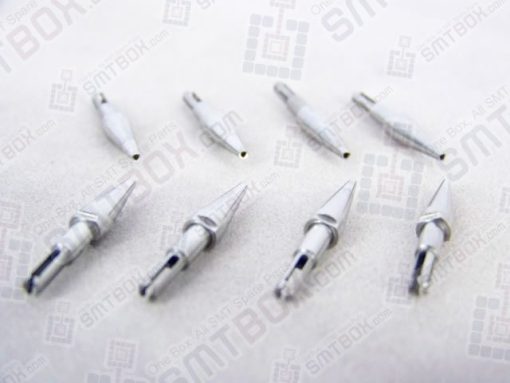

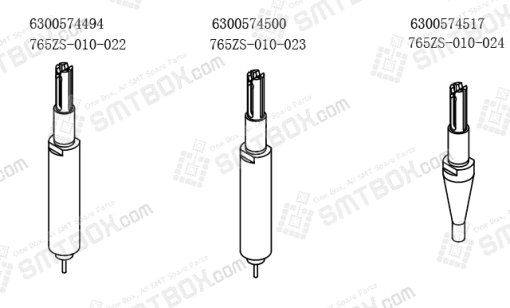

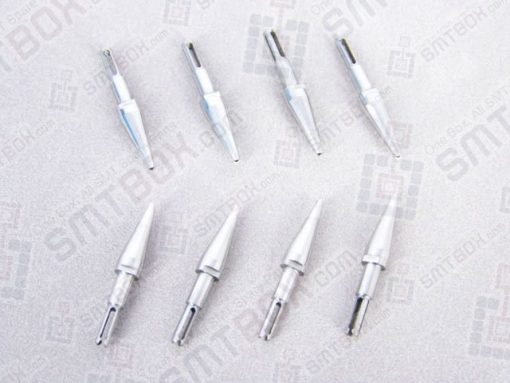

6300574494	NOZZLE(1)	765ZS-010-022
6300574500	NOZZLE(2)	765ZS-010-023
6300574517	NOZZLE(3)	765ZS-010-024

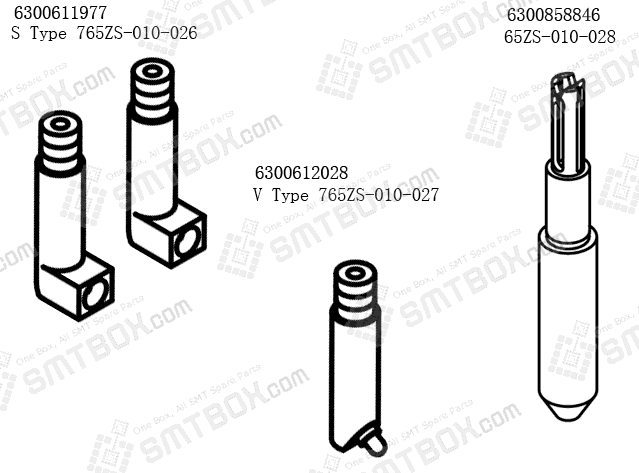

6300611977	NOZZLE	S Type 765ZS-010-026
6300612028	NOZZLE	V Type 765ZS-010-027
6300858846	NOZZLE	65ZS-010-028

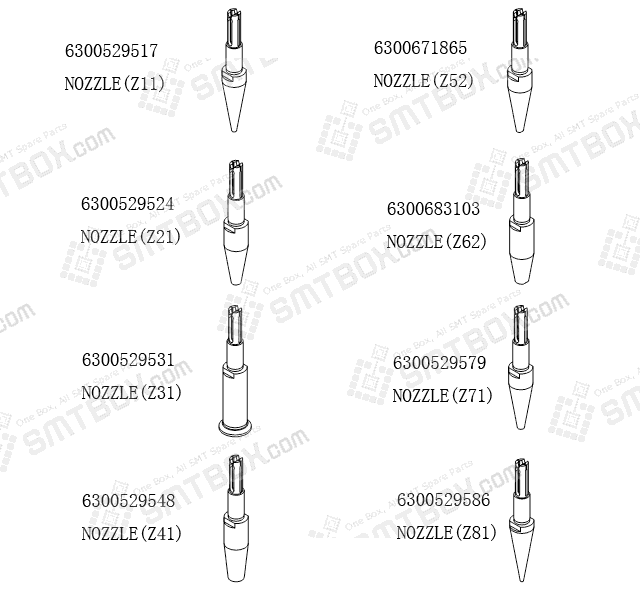

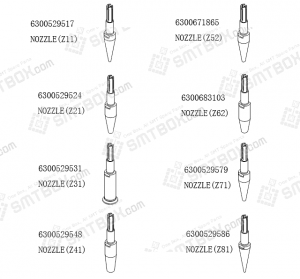

6300529517	NOZZLE(Z11)	N/A
6300529524	NOZZLE(Z21)	N/A
6300529531	NOZZLE(Z31)	N/A
6300529548	NOZZLE(Z41)	N/A
6300671865	NOZZLE(Z52)	N/A
6300683103	NOZZLE(Z62)	N/A
6300529579	NOZZLE(Z71)	N/A
6300529586	NOZZLE(Z81)	N/A

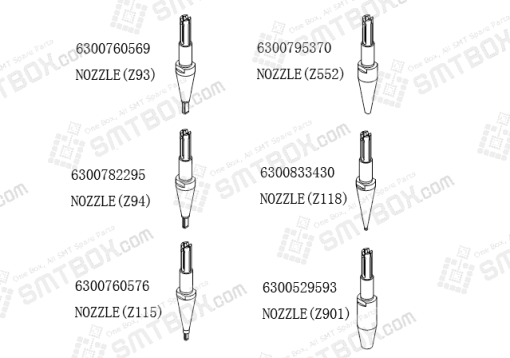

6300760569	NOZZLE(Z93)	N/A
6300782295	NOZZLE(Z94)	N/A
6300760576	NOZZLE(Z115)	N/A
6300833430	NOZZLE(Z118)	N/A
6300795370	NOZZLE(Z552)	N/A
6300529593	NOZZLE(Z901)	N/A

4795 / 4796 / 4797 HSP Nozzle Matrix

Part Number	Component Size – Inches	Applicable Comonents (Reference)	Remarks
630 052 9517	0.0630 x 0.0315 (1.6 x 0.8) Thickness: 0.0177~0.0315 (0.45~0.8)	1608-Type Capacitors and Resistors	Nozzle Z11
630 052 9254	0.0984 x 0.0630 0.1575 x 0.1181 (2.5 x 1.6 ~ 4 x 3) Thickness: 0.0177 ~ 0.9843 (0.45 ~ 2.5)	3216- and 3225-Type Capacitors and Resistors. Tantalum capacitors A, Minimold Transistors	Nozzle Z21
630 052 9531	0.3150 x 0.3150 0.7795 x 0.7795 (8 x 8 ~ 19.8 x 19.8) Thickness: 0.0394 x 0.1969 (1 ~ 5)	SOP, QFP, PLCC	Nozzle Z31
630 052 9548	0.1772 x 0.0984 ~ 0.3150 x 0.3150 (4.5 x 2.5 8 x 8) Thickness: 0.0394 ~ 0.2559 (1 ~ 6.5)	4532-type or larger capacitors and resistors Tantalum capacitors B, C and D, aluminum electrolytic capacitors SOP6 ~10 pins	Nozzle Z41
630 067 1865	0.0787 x Ã¸ 0.0394 ~ 0.1378 x Ã¸ 0.0591 (2 x Ã¸1 ~ 3.5 x Ã¸1.5)	Cylindrical Resistors and Diodes	Nozzle Z52
630 068 3103	0.1378 x Ã¸ 0.0472 ~ 0.2362 x Ã¸ 0.1102 (3.5 x Ã¸ 1.2 ~ 6 x Ã¸ 2.8)	Cylindrical Resistors and Diodes	Nozzle Z62
630 052 9579	0.0787 x 0.0492 (2 x 1.25) Thickness: 0.0177 ~ 0.0492 (0.45 ~ 1.25)	2125-type capacitors and resistors, super mini-transistors	Nozzle Z71
630 052 9586	0.0394 x 0.0197 (1 x 0.5) thickness: 0.0118 ~ 0.0236 (0.3 ~ 0.6)	1005-type capacitors and resistors	Nozzle Z81
630 076 0569	0.0394 x 0.0197 ~ 0.0787 x 0.0492 (1 x 0.5 ~ 2 x 1.25) Thickness: 0.0118 ~ 0.0315 (0.3 ~ 0.8)	1005 ~ 2125-type capacitors and resistors nozzle for front recognition	Nozzle Z93 (4795, 4796 only)
630 078 2295	0.0394 x 0.0197 ~ 0.0787 x 0.0492 (1 x 0.5 ~ 2 x 1.25) Thickness: 0.0118 ~ 0.0315 (0.3 ~ 0.8)	1005 ~ 2012-type (for close adjoining pitches) capacitors and resistors nozzle for front recognition	Nozzle Z94 (4795, 4796 only)
630 124 1203	0.0394 x 0.0197 ~ 0.0787 x 0.0492 (1 x 0.5 ~ 2 x 1.25) Thickness: 0.0118 ~ 0.0315 (0.3 ~ 0.8)	1005 ~ 2012-type (for close adjoining pitches) capacitors and resistors nozzle for front recognition	Nozzle Z101 (4797 only)
630 122 0475	0.0236 x 0.0118 (0.6 x 0.3) Thickness: 0.0079 ~ 0.0118 (0.2 ~ 0.3)	0603-type (0201) capacitors and resistors nozzle for front recognition	Nozzle Z122 (4795, 4796 only, must be used in conjuction with nozzle storage plate 630 115 5944)
630 126 5094	0.0236 x 0.0118 (0.6 x 0.3) Thickness: 0.0079 ~ 0.0118 (0.2 ~ 0.3)	0603-type (0201) capacitors and resistors nozzle for front recognition	Nozzle Z124 (4797 only)
630 079 5370	0.0630 x Ã¸ 0.0394 (1.6 x Ã¸ 1.0)	Cylindrical resistors and capacitors	Nozzle Z552 (Exclusively used for bulk feeders)
630 052 9593	0.118 x 0.142 ~ 0.315 x 0.315 (3.0 x 3.6 ~ 8.0 x 8.0) Thickness:0.0394 ~ 0.1378 (1 ~ 3.5) 630 052 9593	Semi-fixed variable resistor	Nozzle Z901
630 121 6515	0.0394 x 0.0197 (1 x 0.5) Thickness: 0.0118 ~ 0.0236 (0.3 ~ 0.6)	1005-type resistors and cpacitors	Nozzle Z911 (4797 only, exclusively for large components with electrodes)
