What is FUJI XP1 XP-141E XP-142E XP-143E Series SMT SMD Pick-up Nozzle?
Looking for FUJI XP1 XP-141E XP-142E XP-143E Series SMT SMD Pick-up Nozzle? This SMT spare part (SKU: XP-141E, Brand: FUJI) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.

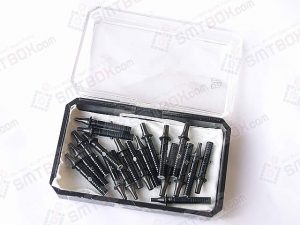

SMD SMT Nozzle for FUJI XP-141E XP-142E XP-143E
| LNo. | PartNo. | QTY | Description | Rating | Remarks |
|---|---|---|---|---|---|
| 1 | ADEPN8010 | 12 | NOZZLE | N/A | N/A |

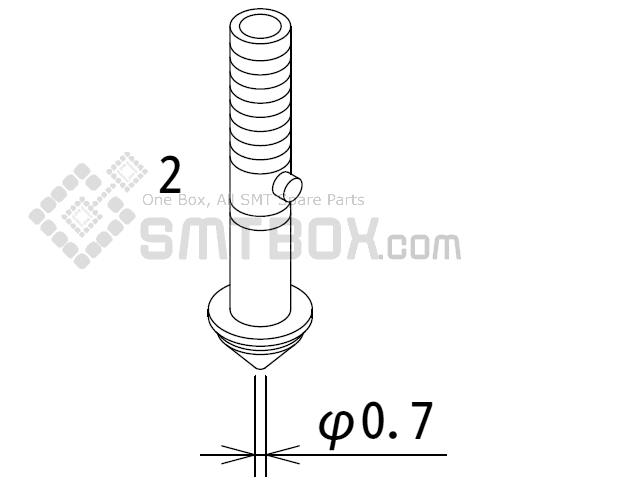

| 2 | ADEPN8020 | 12 | NOZZLE | N/A | N/A |
| 3 | ADEPN8030 | 12 | NOZZLE | N/A | N/A |

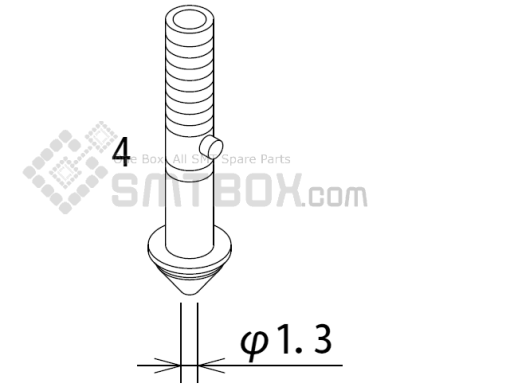

| 4 | ADEPN8040 | 12 | NOZZLE | N/A | N/A |

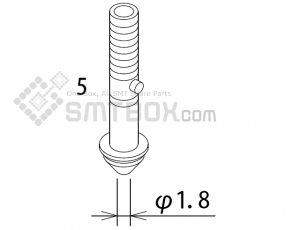

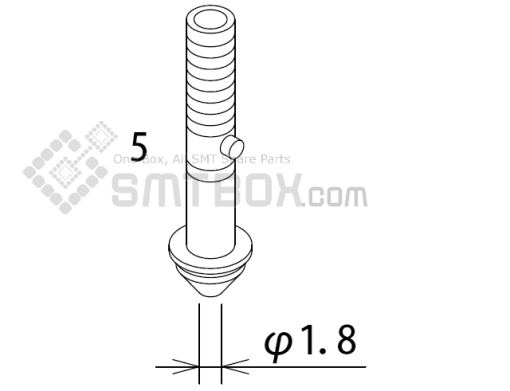

| 5 | ADEPN8050 | 12 | NOZZLE | N/A | N/A |
The FUJI XP1 XP-141E XP-142E XP-143E Series SMT SMD Pick-up Nozzle (SKU: XP-141E) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive FUJI SMD Nozzle, FUJI SMD Spare Parts inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
How to use FUJI XP1 XP-141E XP-142E XP-143E Series SMT SMD Pick-up Nozzle?
For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.
- Power down your mounter and disconnect the vacuum line.
- Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
- Carefully align the new component and tighten to the manufacturer's torque specifications.
- Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
