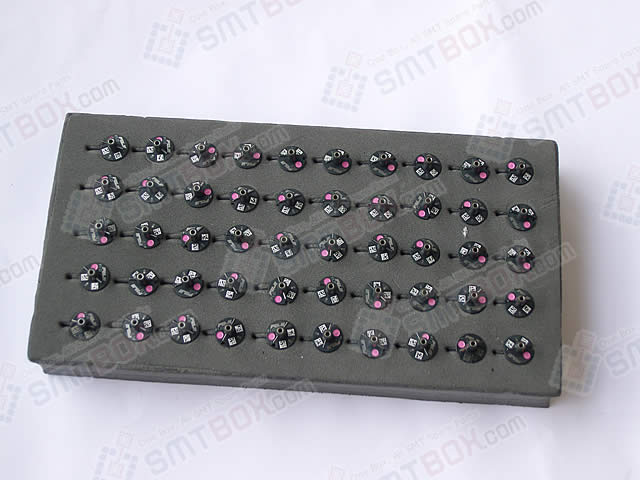

What is FUJI NXT H01 H04 H08 H12 SMT SMD Nozzle?
Looking for FUJI NXT H01 H04 H08 H12 SMT SMD Nozzle? This SMT spare part (SKU: SMTBOX-SMT-SPARE-PARTS-000212, Brand: FUJI) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.
SMD SMT Nozzle for FUJI PTS-NXT-08JE H08 H12
| LNo. | Part No. | QTY | Description | Rating | Remarks |
|---|---|---|---|---|---|

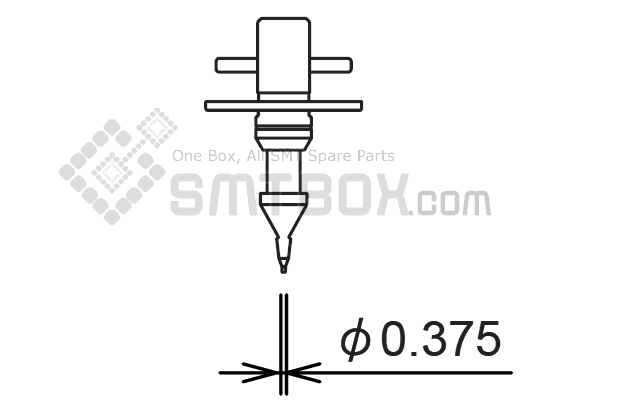

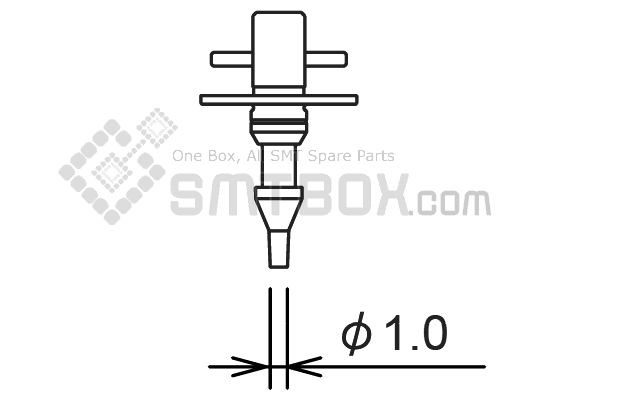

| 1 | AA1AT04 | 1 | NOZZLE | R07-003-070 | N/A |

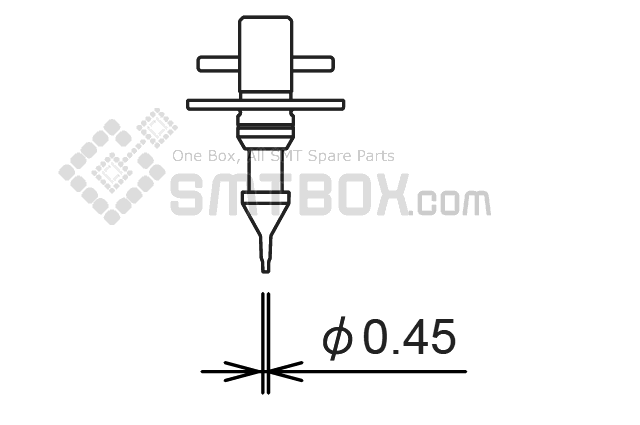

| 2 | AA05603 | 1 | NOZZLE | R07-004-070 | N/A |

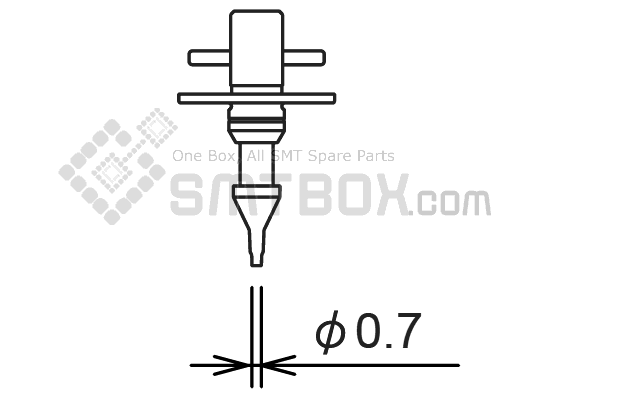

| 3 | AA05703 | 1 | NOZZLE | R07-007-070 | N/A |
| 4 | AA05803 | 1 | NOZZLE | R07-010-070 | N/A |

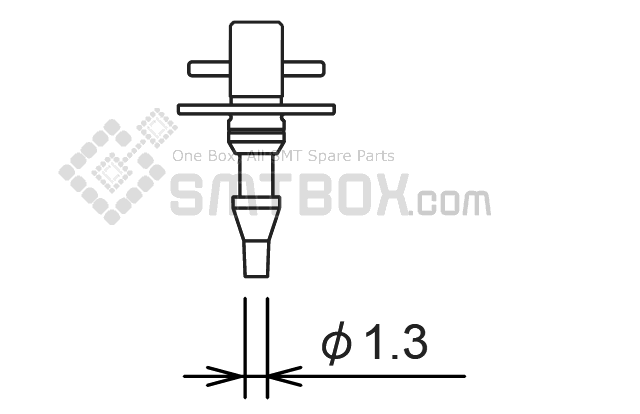

| 5 | AA20A03 | 1 | NOZZLE | R07-013-070 | N/A |
| 6 | AA20B03 | 1 | NOZZLE | R07-018-070 | N/A |

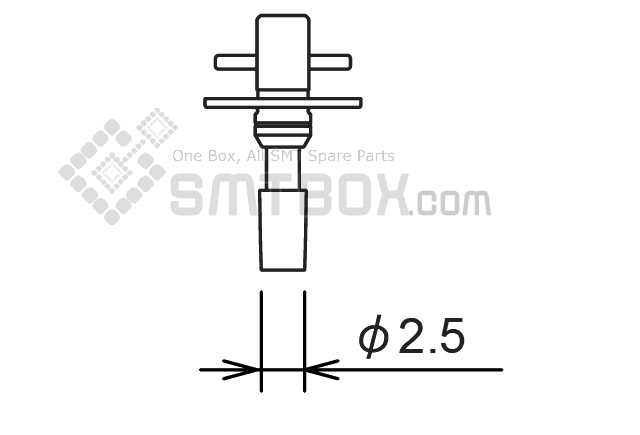

| 7 | AA20C03 | 1 | NOZZLE | R07-025-070 | N/A |

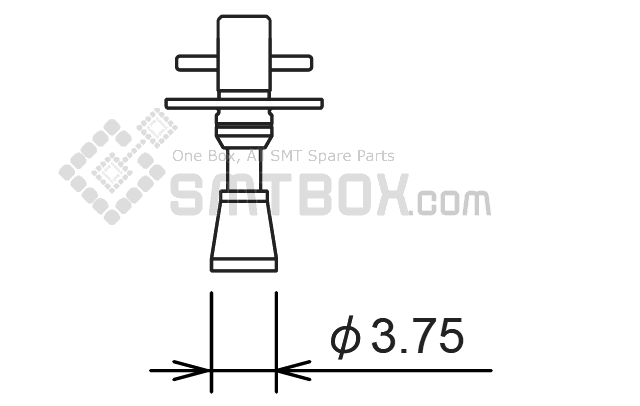

| 8 | AA20D03 | 1 | NOZZLE | R07-037-070 | N/A |

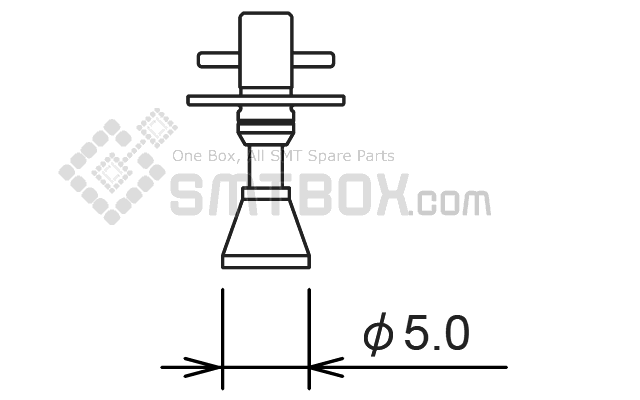

| 9 | AA20E03 | 1 | NOZZLE | R07-050-070 | N/A |

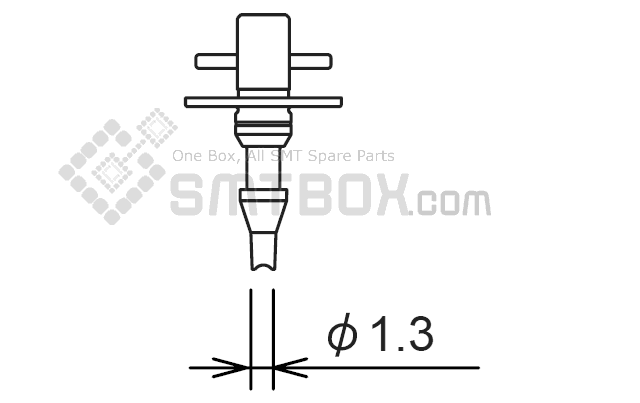

| 10 | AA06404 | 1 | NOZZLE | R07-013M-070 | N/A |

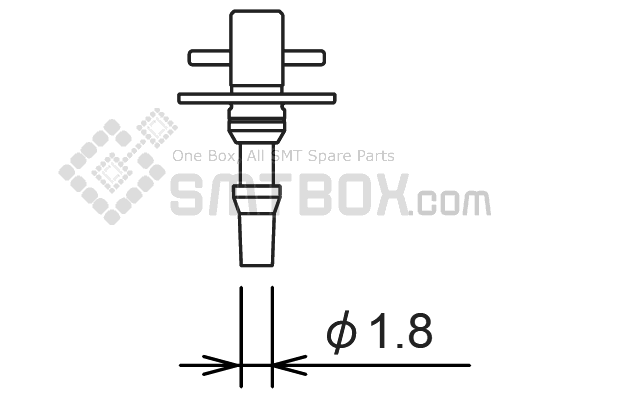

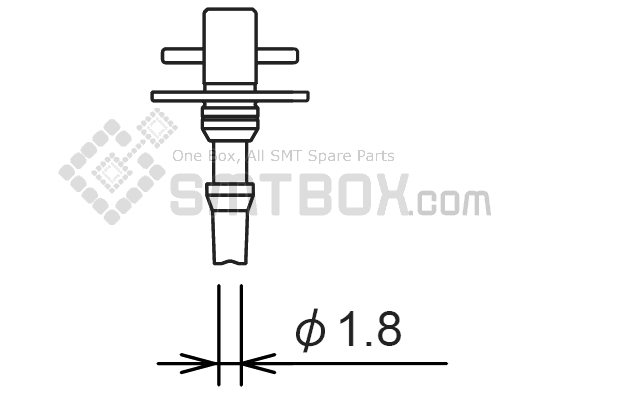

| 11 | AA19G04 | 1 | NOZZLE | R07-018M-070 | N/A |

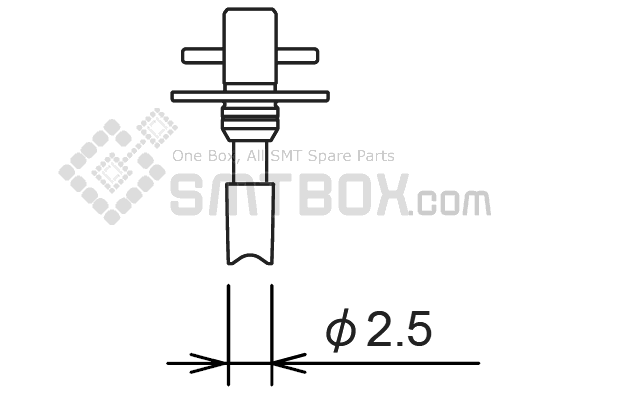

| 12 | AA06504 | 1 | NOZZLE | R07-025M-070 | N/A |
| 13 | AA0WT05 | 1 | NOZZLE | R07-025G-070 | N/A |

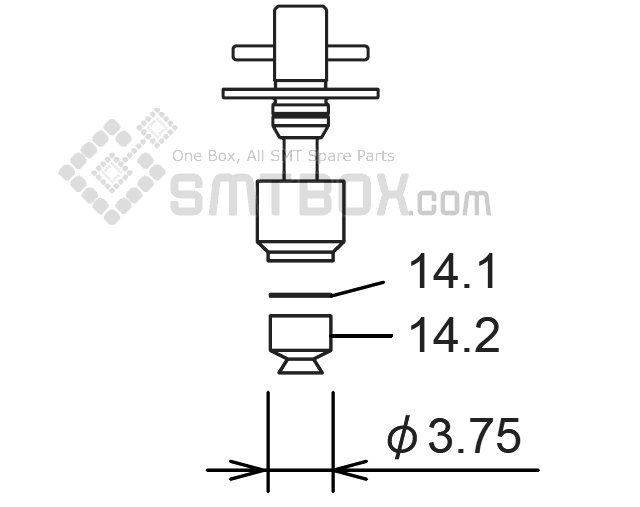

| 14 | AA18C02 | 1 | NOZZLE | R07-037G-070 | N/A |
| 14.1 | PB30310 | 1 | SHIM | N/A | N/A |
| 14.2 | H1194K | 1 | PAD,VACUUM | KPA-2-N | N/A |

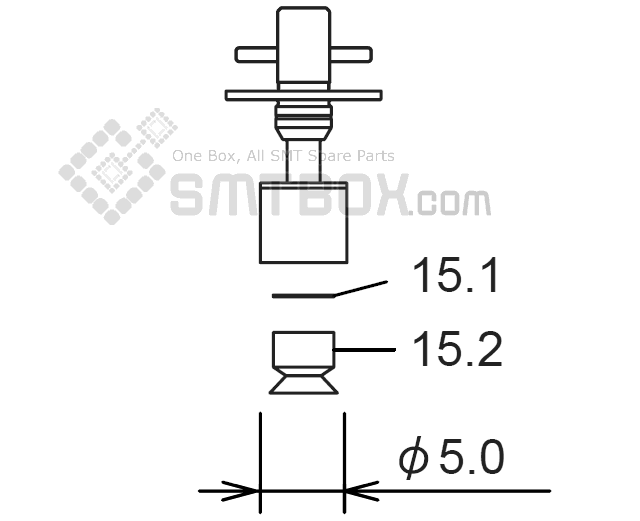

| 15 | AA06302 | 1 | NOZZLE | R07-050G-070 | N/A |
| 15.1 | PB30310 | 1 | SHIM | N/A | N/A |
| 15.2 | H1339B | 1 | PAD,VACUUM | KPA-3.5-NOT | N/A |
SMD SMT Nozzle for FUJI PTS-NXT-08JE H04 PART1
| LNo. | PartNo. | QTY | Description | Rating | Remarks |
|---|---|---|---|---|---|

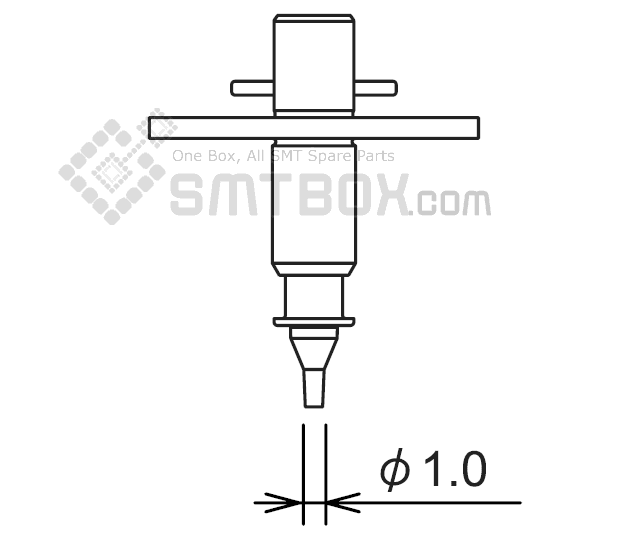

| 2 | AA06W07 | 1 | NOZZLE | R19-010-155 | N/A |

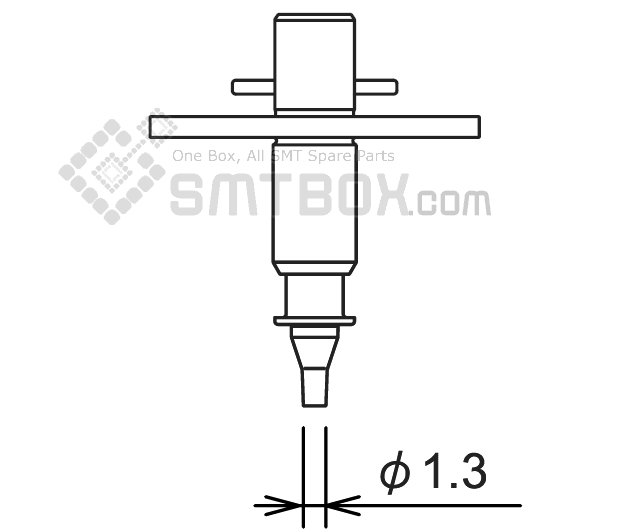

| 3 | AA06X08 | 1 | NOZZLE | R19-013-155 | N/A |

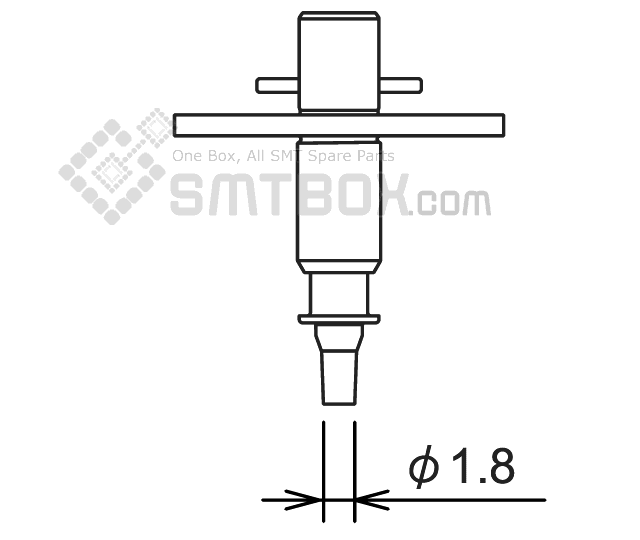

| 4 | AA06Y08 | 1 | NOZZLE | R19-018-155 | N/A |

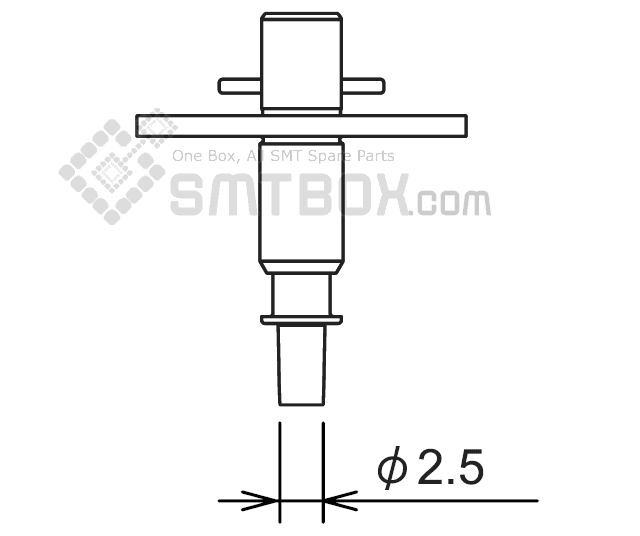

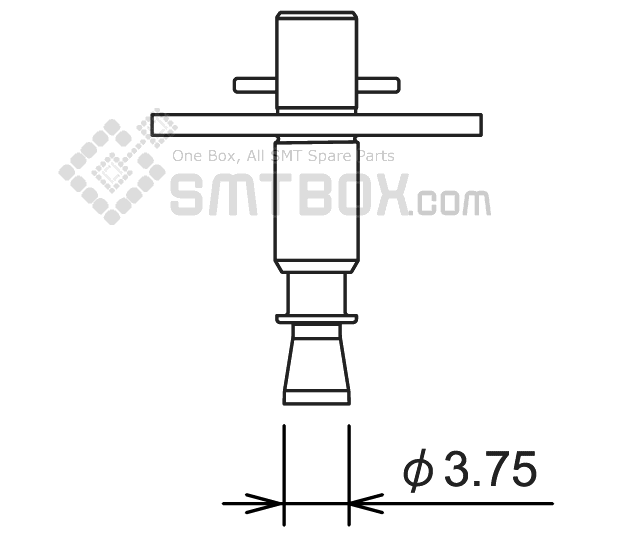

| 5 | AA06Z09 | 1 | NOZZLE | R19-025-155 | N/A |
| 6 | AA07A09 | 1 | NOZZLE | R19-037-155 | N/A |

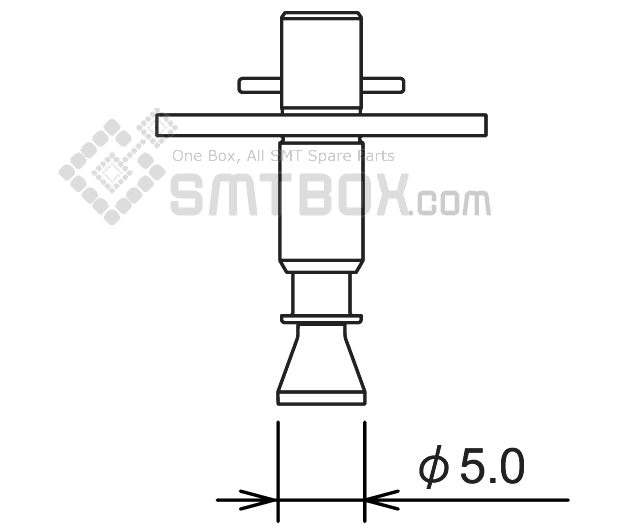

| 7 | AA07B08 | 1 | NOZZLE | R19-050-155 | N/A |
| 8 | AA07C06 | 1 | NOZZLE | R19-070-155 | N/A |

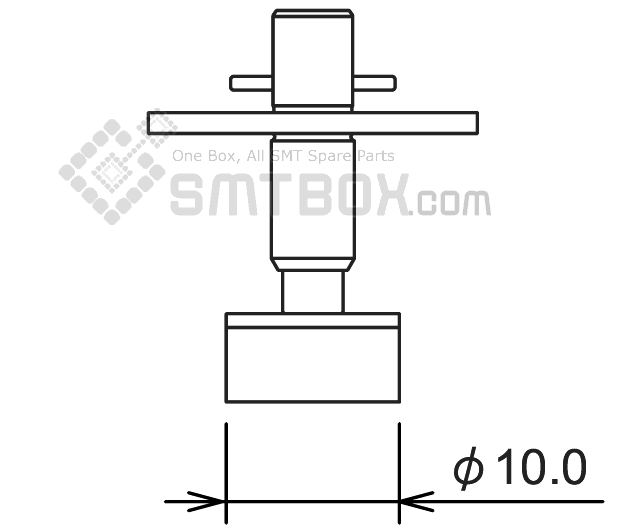

| 9 | AA07D05 | 1 | NOZZLE | R19-100-155 | N/A |

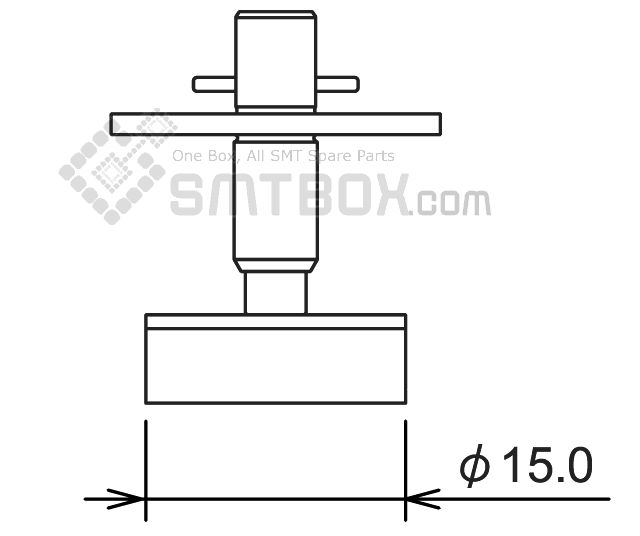

| 10 | AA07E06 | 1 | NOZZLE | R19-150-155 | N/A |
SMD SMT Nozzle for FUJI PTS-NXT-08JE H04 PART2
| LNo. | PartNo. | QTY | Description | Rating | Remarks |
|---|---|---|---|---|---|

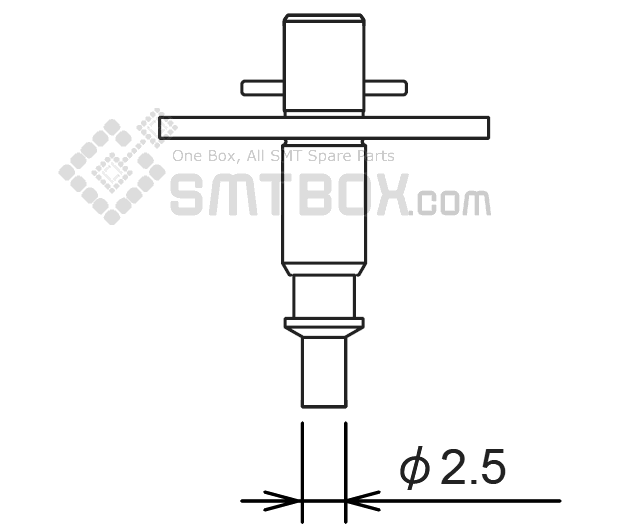

| 1 | AA07F07 | 1 | NOZZLE | R19-025G-155 | N/A |

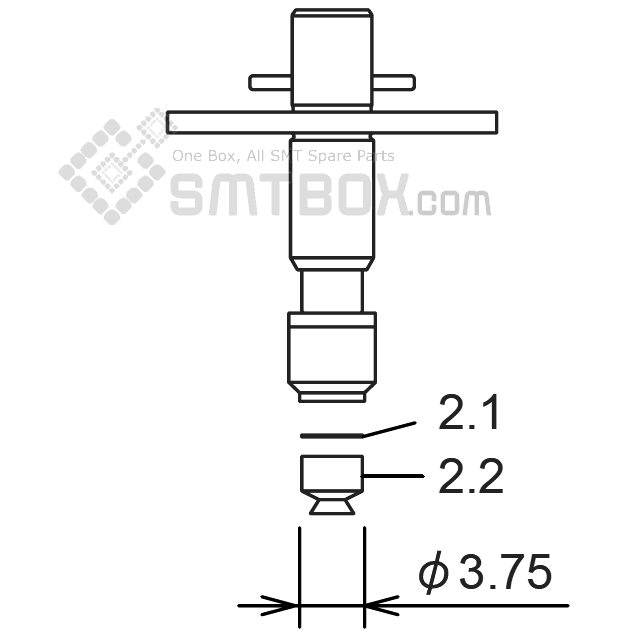

| 2 | AA07G05 | 1 | NOZZLE | R19-037G-155 | N/A |
| 2.1 | PB30310 | 1 | SHIM | N/A | N/A |
| 2.2 | H1194K | 1 | PAD,VACUUM | KPA-2-NOT | N/A |

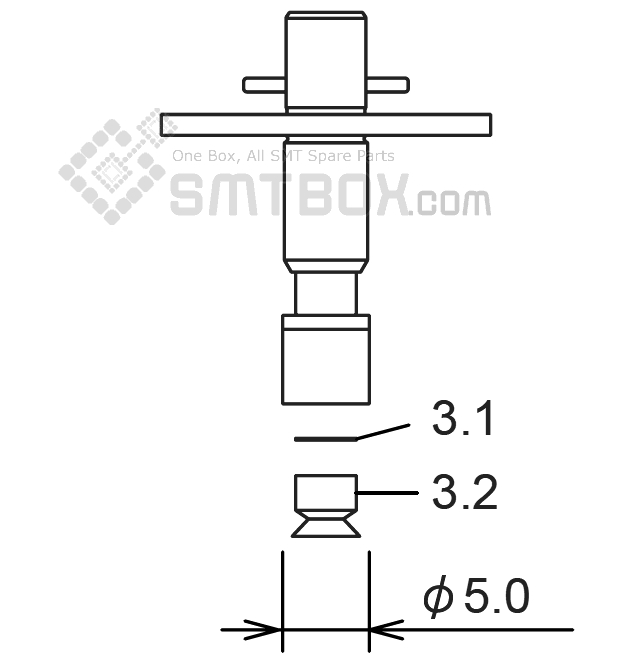

| 3 | AA07H05 | 1 | NOZZLE | R19-050G-155 | N/A |
| 3.1 | PB30310 | 1 | SHIM | N/A | N/A |
| 3.2 | H1339B | 1 | PAD,VACUUM | KPA-3.5-NOT | N/A |

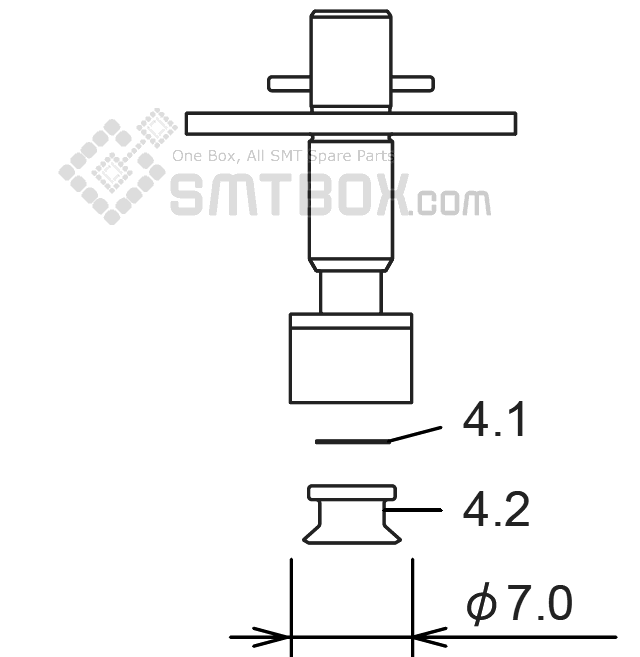

| 4 | AA07K05 | 1 | NOZZLE | R19-070G-155 | N/A |
| 4.1 | PB31591 | 1 | SHIM | N/A | N/A |
| 4.2 | PG01611 | 1 | PAD,VACUUM | N/A | N/A |

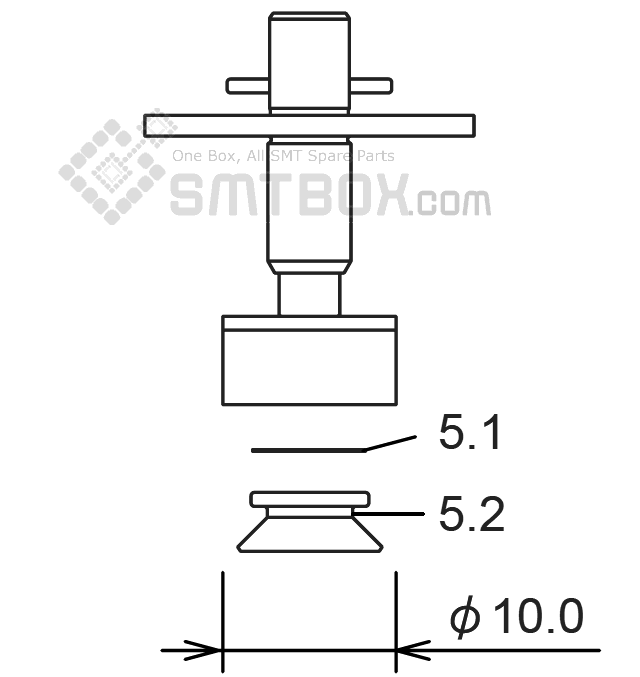

| 5 | AA07L05 | 1 | NOZZLE | R19-100G-155 | N/A |
| 5.1 | PB31600 | 1 | SHIM | N/A | N/A |
| 5.2 | PG01620 | 1 | PAD,VACUUM | N/A | N/A |
| 6 | AA07M07 | 1 | NOZZLE | R19-150G-155 | N/A |
| 6.1 | PB31611 | 1 | SHIM | N/A | N/A |

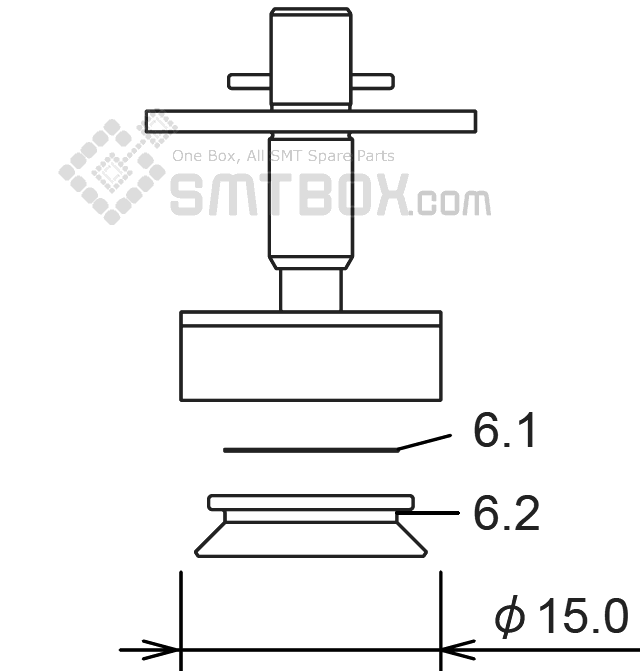

| 6.2 | PG01630 | 1 | PAD,VACUUM | N/A | N/A |
SMD SMT Nozzle for FUJI PTS-NXT-08JE H01 PART1
| LNo. | Part No. | QTY | Description | Rating | remarks |
|---|---|---|---|---|---|

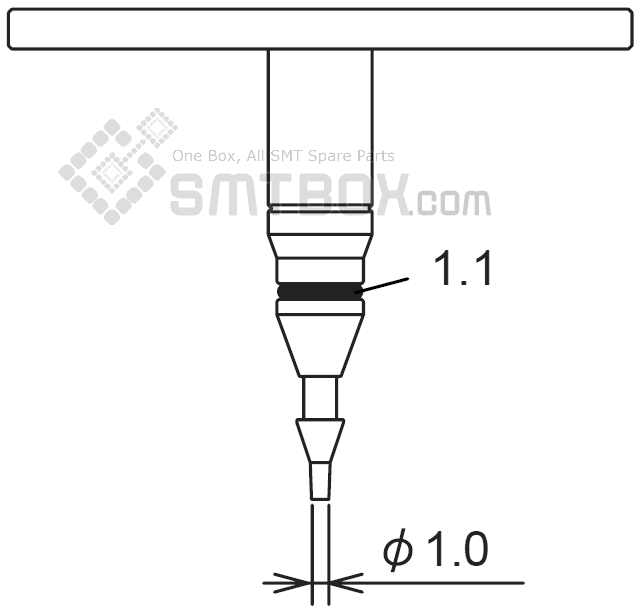

| 1 | AA0AS05 | 1 | NOZZLE | R36-010-260 | N/A |
| 1.1 | A5188M | 1 | O RING | 9X0.8(FKM70) | N/A |

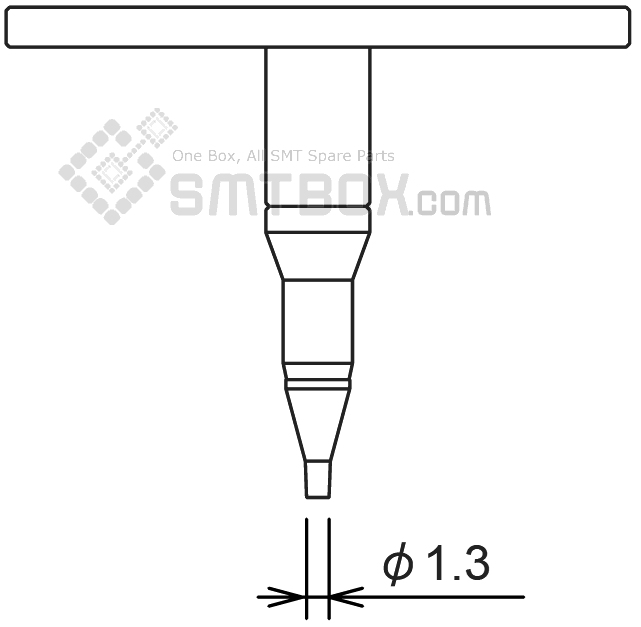

| 2 | AA06807 | 1 | NOZZLE | R36-013-260 | N/A |

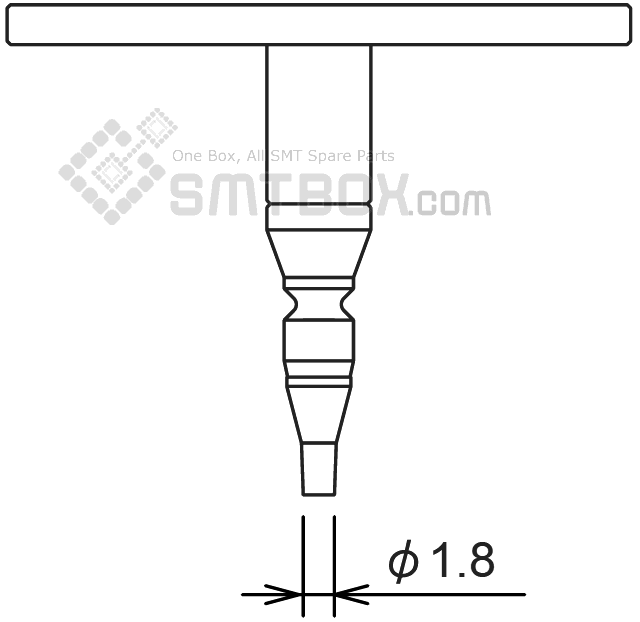

| 3 | AA0HS02 | 1 | NOZZLE | R36-018-260 | N/A |

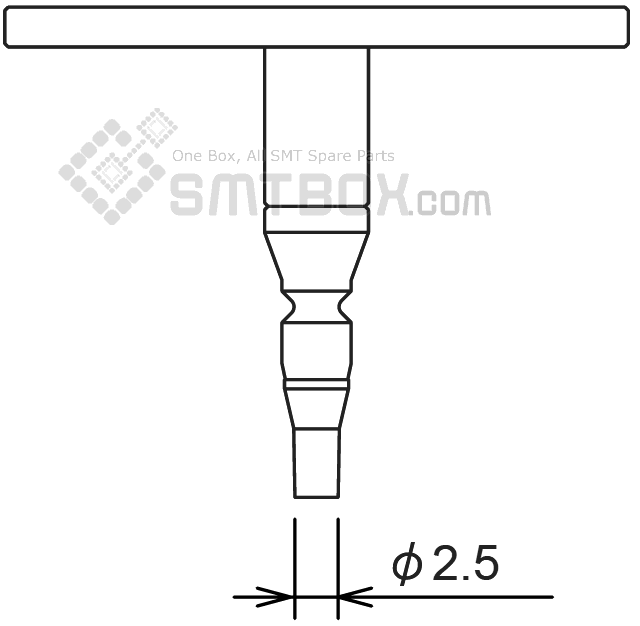

| 4 | AA0HT02 | 1 | NOZZLE | R36-025-260 | N/A |

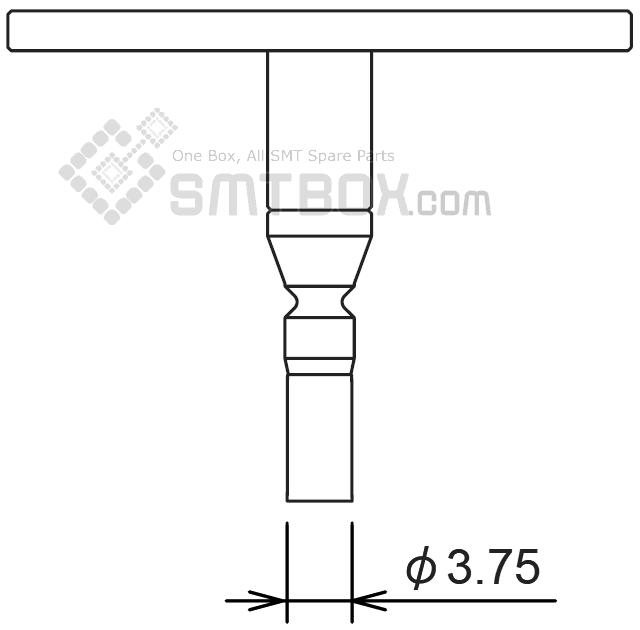

| 5 | AA0HW02 | 1 | NOZZLE | R36-037-260 | N/A |

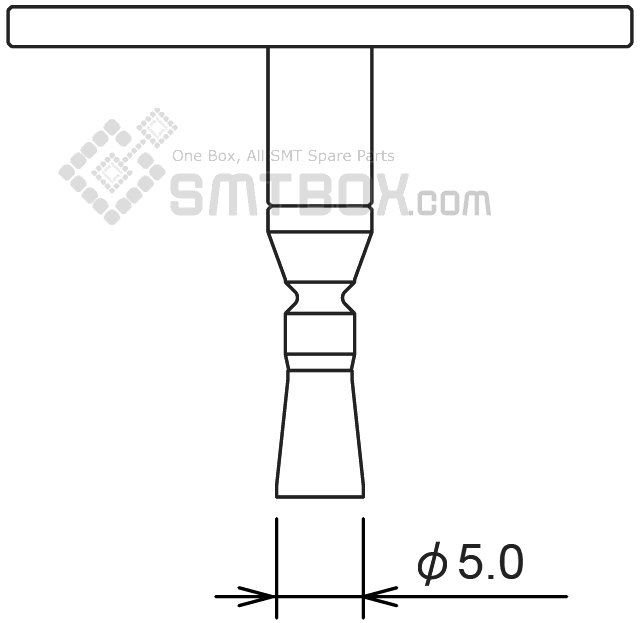

| 6 | AA0HX02 | 1 | NOZZLE | R36-050-260 | N/A |

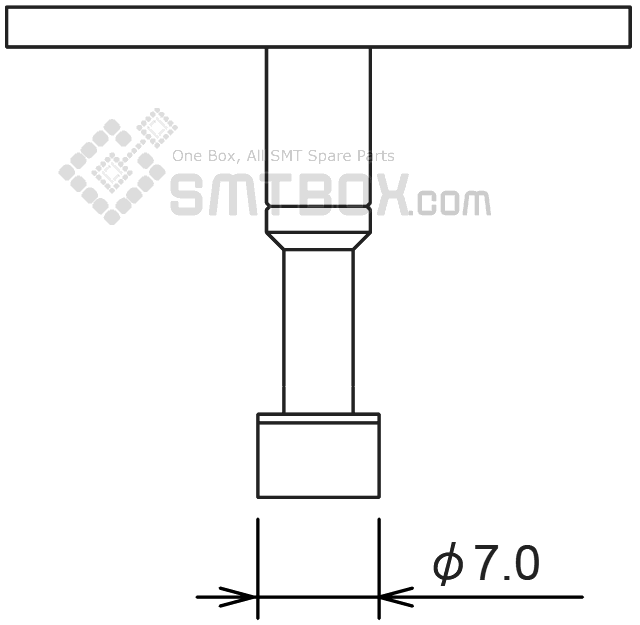

| 7 | AA08008 | 1 | NOZZLE | R36-070-260 | N/A |

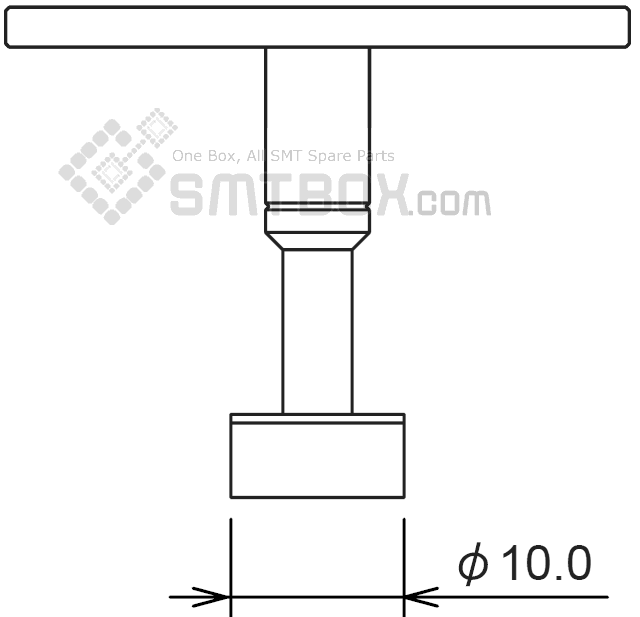

| 8 | AA08107 | 1 | NOZZLE | R36-100-260 | N/A |

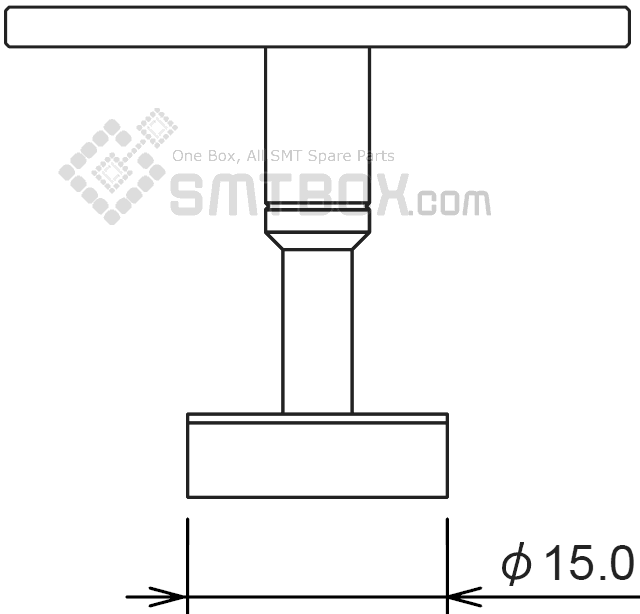

| 9 | AA08207 | 1 | NOZZLE | R36-150-260 | N/A |
| 10 | AA08307 | 1 | NOZZLE | R36-200-260 | N/A |

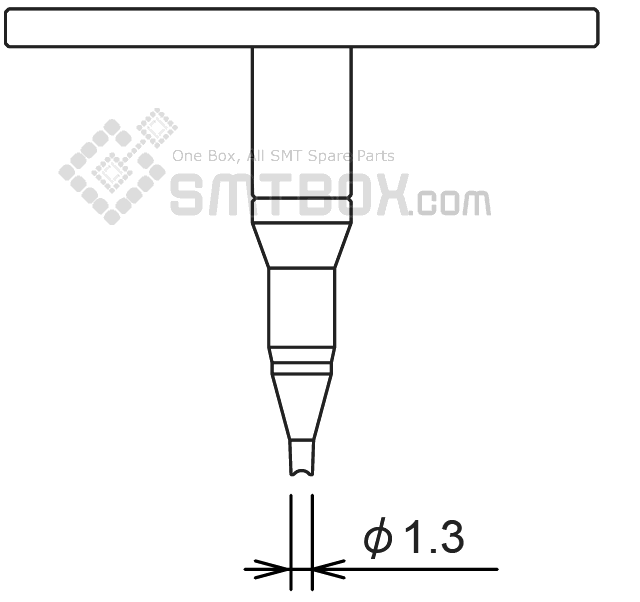

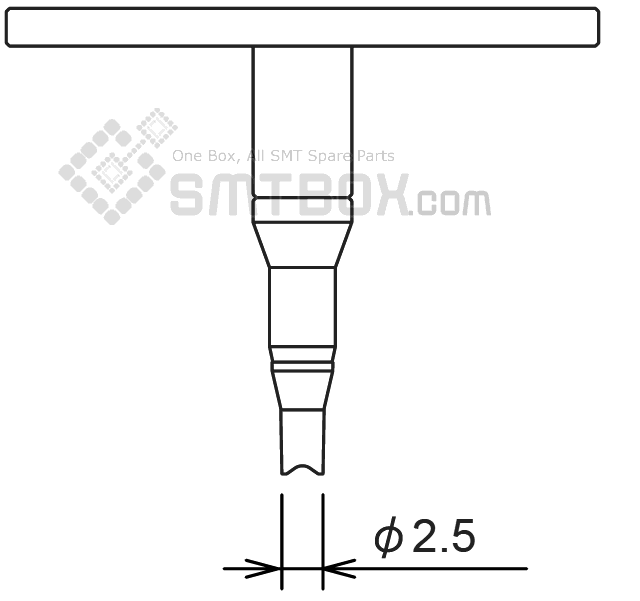

| 11 | AA0MZ02 | 1 | NOZZLE | R36-013M-260 | N/A |

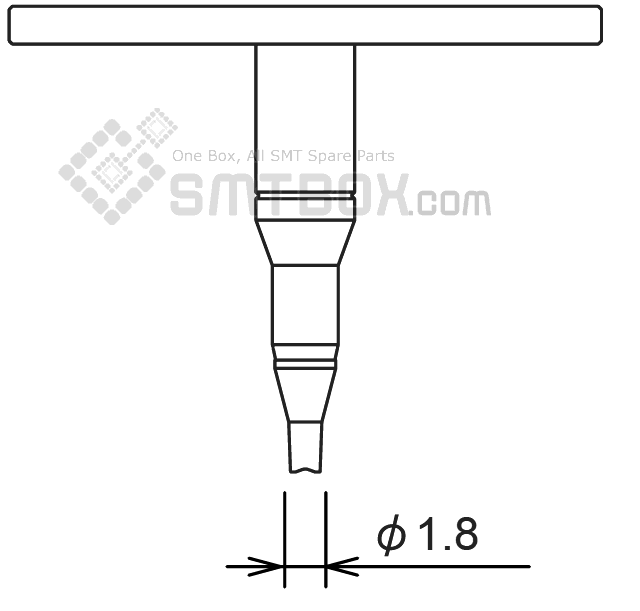

| 12 | AA11R02 | 1 | NOZZLE | R36-018M-260 | N/A |
| 13 | AA0ML03 | 1 | NOZZLE | R36-025M-260 | N/A |
SMD SMT Nozzle for FUJI PTS-NXT-08JE H01 PART2
| LNo. | PartNo. | QTY | Description | Rating | Remarks |
|---|---|---|---|---|---|

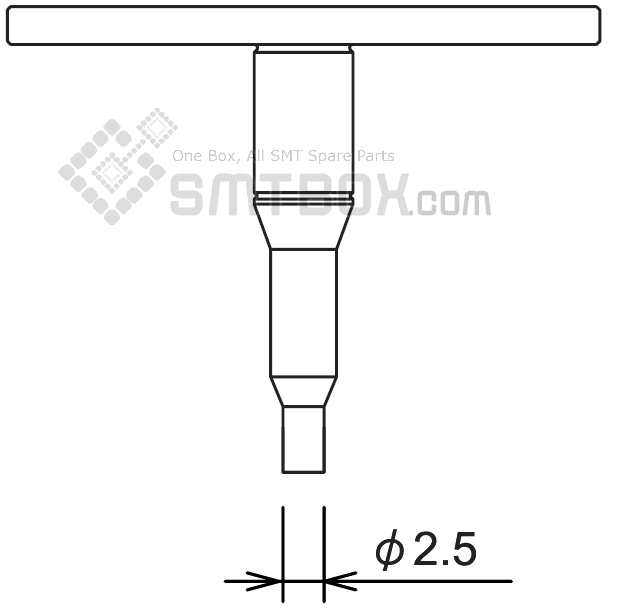

| 1 | AA08411 | 1 | NOZZLE | R36-025G-260 | N/A |

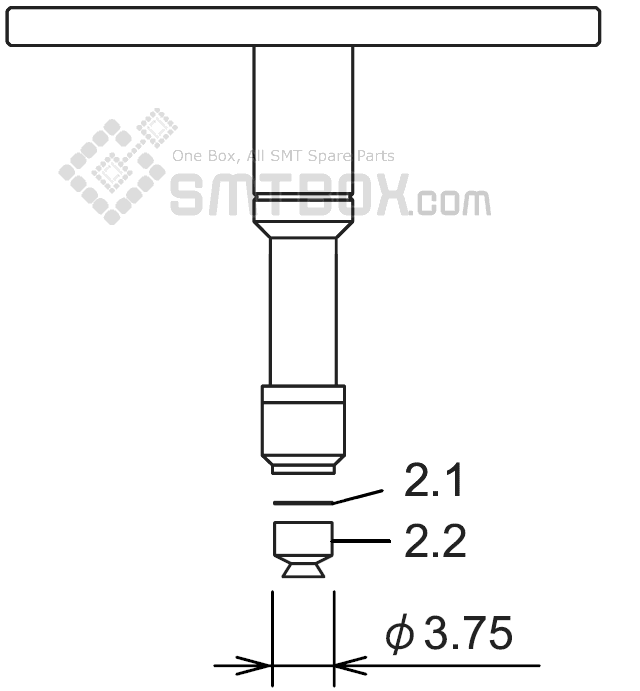

| 2 | AA08509 | 1 | NOZZLE | R36-037G-260 | N/A |
| 2.1 | PB30310 | 1 | SHIM | N/A | N/A |
| 2.2 | H1194K | 1 | PAD,VACUUM | KPA-2-NOT | N/A |
| 3 | AA07209 | 1 | NOZZLE | R36-050G-260 | N/A |
| 3.1 | PB30310 | 1 | SHIM | N/A | N/A |
| 3.2 | H1339B | 1 | PAD,VACUUM | KPA-3.5-NOT | N/A |

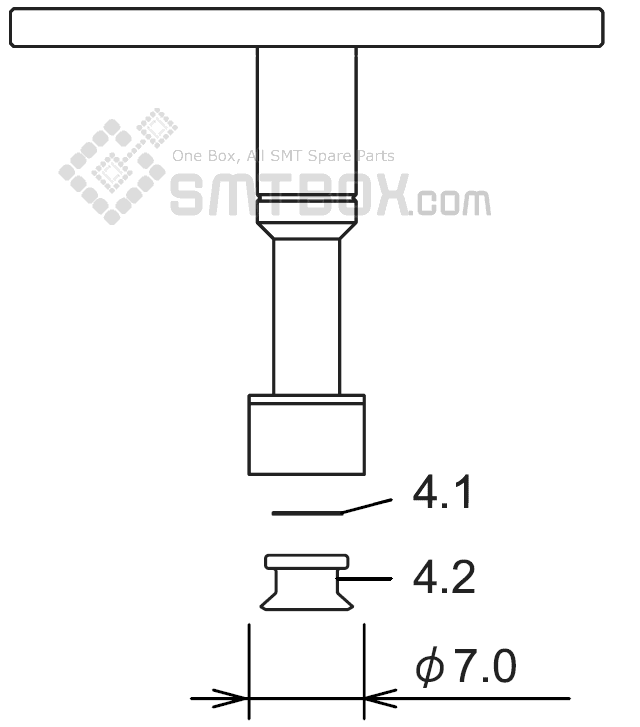

| 4 | AA07311 | 1 | NOZZLE | R36-070G-260 | N/A |
| 4.1 | PB31591 | 1 | SHIM | N/A | N/A |
| 4.2 | PG01611 | 1 | PAD,VACUUM | N/A | N/A |

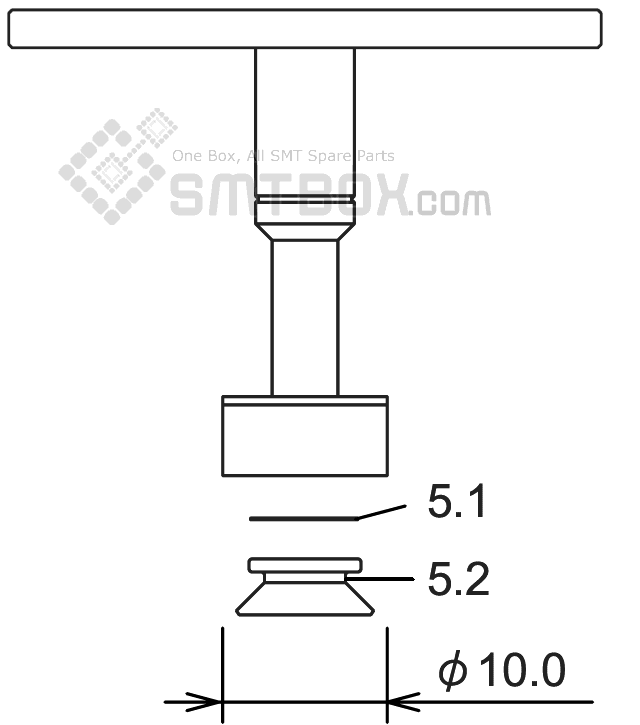

| 5 | AA07410 | 1 | NOZZLE | R36-100G-260 | N/A |
| 5.1 | PB31600 | 1 | SHIM | N/A | N/A |
| 5.2 | PG01620 | 1 | PAD,VACUUM | N/A | N/A |

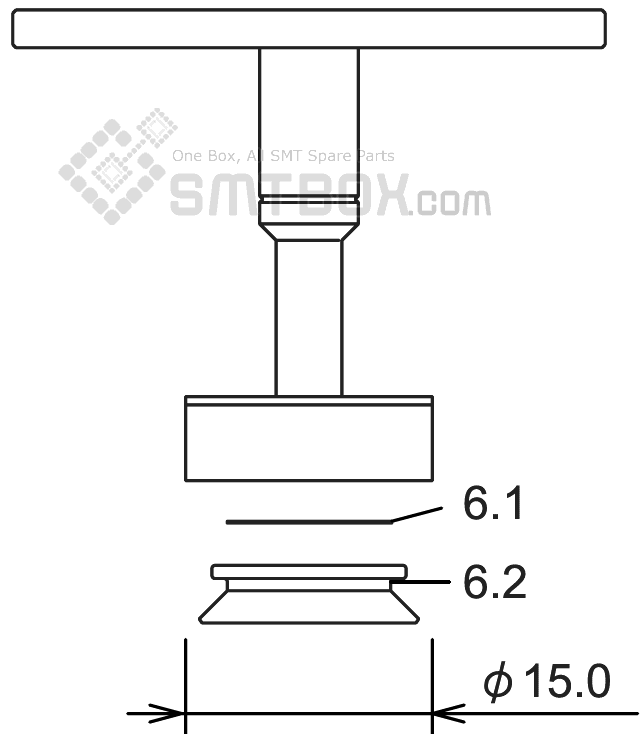

| 6 | AA07511 | 1 | NOZZLE | R36-150G-260 | N/A |
| 6.1 | PB31611 | 1 | SHIM | N/A | N/A |
| 6.2 | PG01630 | 1 | PAD,VACUUM | N/A | N/A |

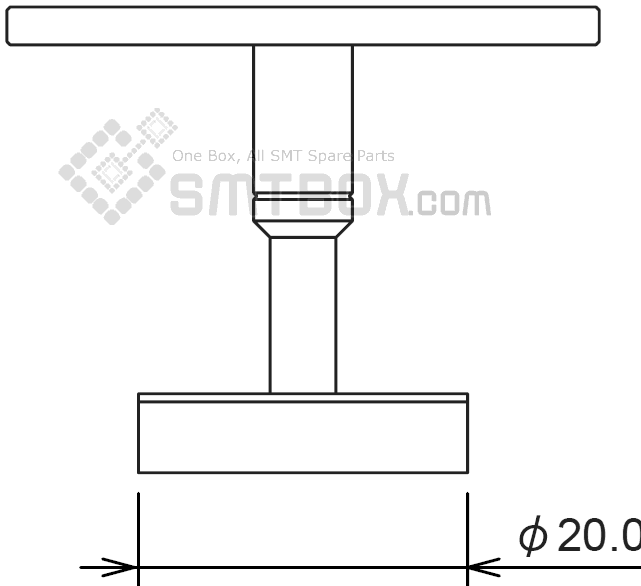

| 7 | AA07610 | 1 | NOZZLE | R36-200G-260 | N/A |
| 7.1 | PB31731 | 1 | SHIM | N/A | N/A |
| 7.2 | PG01640 | 1 | PAD,VACUUM | N/A | N/A |
The FUJI NXT H01 H04 H08 H12 SMT SMD Nozzle (SKU: SMTBOX-SMT-SPARE-PARTS-000212) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive FUJI SMD Nozzle, FUJI SMD Spare Parts inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
How to use FUJI NXT H01 H04 H08 H12 SMT SMD Nozzle?
For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.
- Power down your mounter and disconnect the vacuum line.
- Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
- Carefully align the new component and tighten to the manufacturer's torque specifications.
- Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
